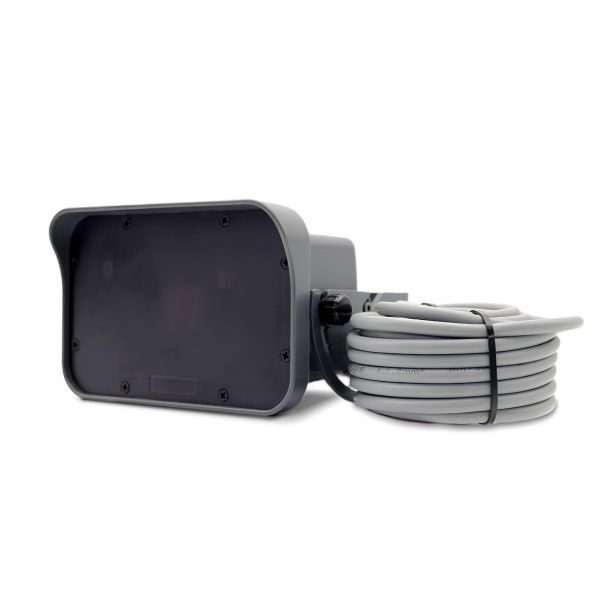

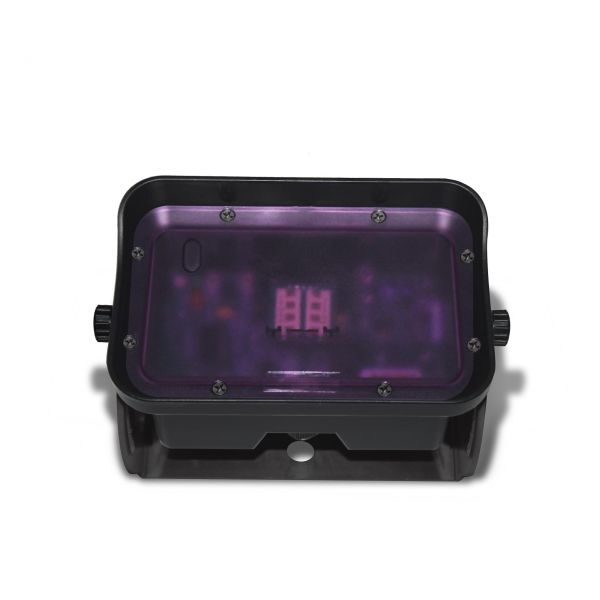

2-9 m Installation High Pedestrian and Vehicular Traffic Motion Detector for Rolling Shutter Door with Two Realy Output
The High Pedestrian and Vehicular Traffic Motion Detector is specifically engineered for rolling shutter doors, featuring a flexible 2–9 meters installation range to adapt to diverse industrial and commercial spaces. Its standout capability lies in accurate differentiation between pedestrians and vehicles, eliminating false triggers that often disrupt rolling shutter operation—ensuring the door only activates for intended traffic (e.g., cars, forklifts, delivery vans) while ignoring passing workers. Equipped with two relay outputs, the detector enables dual-function control: one relay directly triggers the rolling shutter’s open/close cycle, while the second integrates seamlessly with external systems (such as access control panels or security alarms) to provide real-time status feedback. Built with durability in mind, it resists dust, minor moisture, and voltage fluctuations, making it suitable for high-traffic environments where reliability is critical.
This detector excels in settings with heavy pedestrian and vehicular movement, where rolling shutter doors need precise, efficient control. In retail storefronts with back-of-house loading zones, it prevents the shutter from opening for staff walking by, securing inventory while speeding up delivery vehicle access. In industrial workshops or logistics hubs, it streamlines workflow by ensuring the shutter only lifts for transport vehicles (e.g., pallet jacks), reducing energy waste from unnecessary openings and minimizing wear on the door’s mechanical components. It also performs reliably in commercial parking garages, where its 2–9m detection range covers entry/exit lanes, and dual relays sync with parking management systems to log vehicle flow. By balancing precision and adaptability, it enhances both operational efficiency and site safety in high-traffic areas relying on rolling shutter doors.
Feature
-
1. Car Detect Only / People Detect Only
- Detection Mechanism: The radar distinguishes between pedestrians and vehicles by analyzing characteristics such as speed, frequency, reflective area, and movement patterns.
- Dual Relays: The radar has two relays that manage pedestrian and vehicle signals separately. Parameters can be set to deactivate one relay, allowing the radar to detect either vehicles only or pedestrians only.
-
2. Horizontal Filtration
- Detection Area Limitation: By restricting the detection area, the radar effectively filters out interfering signals from other directions, such as objects moving in neighboring areas.
- Lateral Movement Exclusion: The radar will not trigger when pedestrians and vehicles move laterally across the door, reducing the chance of false triggering.
-
3. Longitudinal Orientation Recognition
- Movement Detection: Similar to horizontal filtration, the radar can recognize the movement of objects in both forward and backward directions.
- Adjustable Functions:
- A: Detects only forward movement.
- B: Detects only backward movement.
- C: Detects both forward and backward movement.
-
4. Setting by Remote Control or Mobile App
- Remote Control: Allows for quick and responsive setup.
- Mobile App: Offers a simple and intuitive interface, though saving data via Bluetooth may require 30-45 seconds due to transmission delays.
-
5. Maximum Installation Height Up to 9m
- Installation Range: The radar can be mounted at heights ranging from 2 to 9 meters.
- Recommended Height: For optimal performance and to avoid accidental contact, it is recommended to install the radar at a height of 3 meters or more.
-
6. Adjustable Detection Area
- Size Adjustment: The detection area can be customized to prevent false triggers and enhance accuracy.
- Levels of Adjustment: Available in small, medium, and large area settings.
-
7. Easy Integration into Different Systems
- Components: The radar includes a power cable and two relay signal cables for detecting people and cars.
- System Integration: It can be integrated into various systems such as automatic door systems, radar dimming systems, traffic control systems, and security systems, offering flexible application possibilities.
Setting Reference
Production & Package
Certification
Product Series
| RVP42-7ME | RVP42-7BW | RVP42-9ME | RVP42-9BW | RVP42-R |
|
2-7 m Insatallation High Remote setting only |  2-7m Installation High
Remote Setting Mobile APP Setting |  2-9m Installation High
Inside Button Setting Remote Setting |  2-9m Installation High
Inside Button Setting Remote Setting Mobile APP Setting |  Radar Remote for All Sensor |
| Android APP QR Code | iOS system App | | | |
 Scan the QR Code to Get the Android System APP |  Search "GL Control" in iOS App store to get the APP | | | |
Company Profile
JUTAI is a manufacturer of Motion Sensor Photoelectric Sensors, combining research, development, production, sales, and distribution. Our dedication to innovation and quality drives us to provide outstanding solutions for our customers. Besides building our brand, we aim to be a reliable production partner, helping to create and promote your unique brand identity.
With over a decade of experience in research and production, we have gained extensive knowledge in wireless communication technology, automatic door sensors, and the wholesale distribution of barrier gates. Our product range includes automatic door sensors, microwave radar sensors for automatic doors, infrared sensor series, loop detectors, various range wireless RFID card readers, and barrier gates. Each JUTAI hardware product is thoughtfully designed to integrate seamlessly with access control systems, offering comprehensive solutions for access control, parking management, and parking guidance systems.
